Wrisco Structural Patio Cover Roofs, which feature a completely flat underside, meet or exceed the stringent requirements of the International Conference of Building Officials in all areas of the United States. Fabricated of precision roll formed aluminum structural roof pans, Wrisco structural roofs are a marvel of modern metal engineering technology, providing exceptional strength without unsightly bulk of external support bracing. In addition, the fascia/gutters, wall hangers and setback beams of every Wrisco Patio Cover or Carport are fabricated of heavy duty, lifetime extruded aluminum.

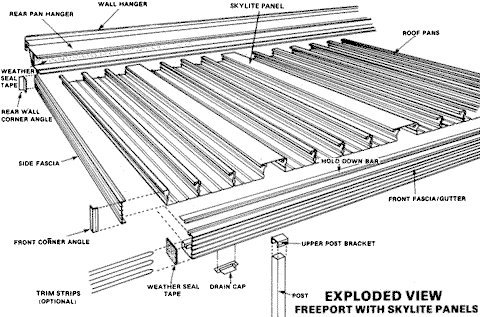

Non-Insulated Patio Cover Diagram

Models

Aluminum flat pan roof panels as shown, with or without skylite. All connection system parts extruded, hanging rail assembly (wall hanger, rear pan hanger), front 5" fascia gutter, 5" side fascias (without gutter), full hold down bar, corner trim angle and drain caps. All hardware included for assembly of patio roof.

Colors

White roof flat pans with white extruded connection system. Walnut woodgrain flat pans underside, (white on top) with Chestnut Brown extruded connection system.

4" Skylite Panels

Available in translucent White.

Optional

Posts or columns must be ordered separately.

There is a Wrisco Patio Cover for every style of home

Wrisco pre-engineered Patio Covers are designed to suit a variety of site, roof and residential conditions. Your Wrisco dealer is uniquely qualified to assist you in planning a custom room enclosure to harmonize with your home and family requirements.

A Wrisco Carport can protect your car and add value to your home

Freestanding or attached, a Wrisco carport will beautifully and economically protect your car from the harmful effects of sun, rain, snow and other extremes of weather. Wrisco carports are available with optional skylites in a variety of sizes and configurations designed to tastefully complement your home surroundings.
